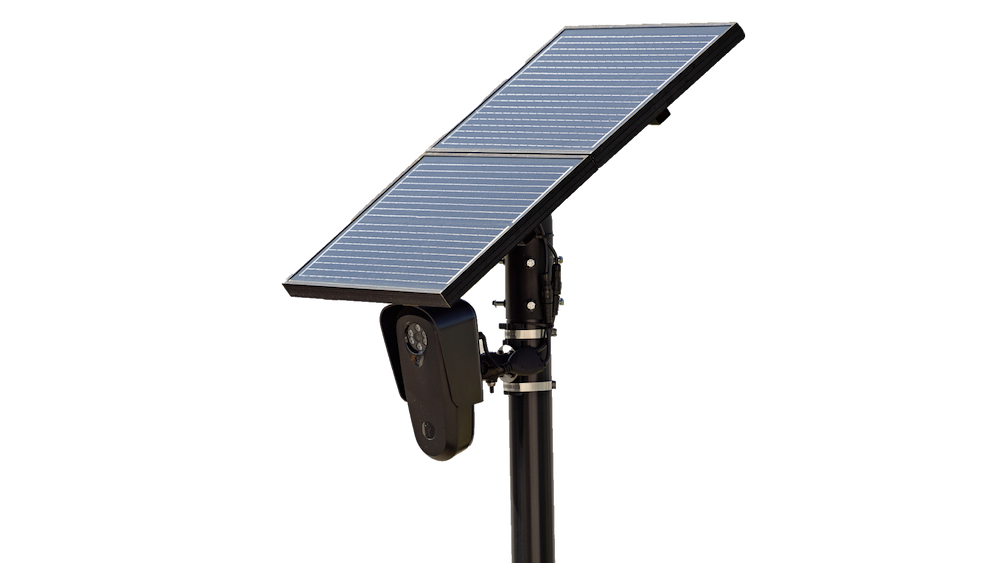

The Unseen Architecture: Dissecting the Flock Falcon Flex Camera for Deeper Understanding

In the ever-expanding landscape of urban surveillance, devices like Automatic License Plate Recognition (ALPR) cameras operate with a quiet ubiquity. These automated eyes capture vast amounts of data, shaping a new layer of civic infrastructure. Our investigation into the Flock Falcon Flex Camera transcends its advertised purpose, delving into its core architecture to understand not just what it does, but how it does it, and perhaps, what else it could do. This is a technical deep dive, an exploration of its inherent properties and the pathways they offer for external interaction and perhaps, alternative applications.

Executive Summary

This report provides a detailed technical dissection of the Flock Falcon Flex Camera, focusing on its hardware architecture, customized Android software, and diverse operational boot modes. Extensive empirical testing and in-depth log analysis have revealed key insights into its design, particularly the ease of access to its internal systems and the discoverability of its diagnostic interfaces.

This analysis embodies the fundamental principles of the right to repair movement - the belief that understanding how technology works is not just a privilege, but a right. Don't let anyone tell you that you can't explore, understand, or modify the devices that operate in our shared public spaces. When surveillance technology is deployed on our streets, funded by our tax dollars, we have every right to understand its capabilities, limitations, and potential for repurposing when their useful life has completed.

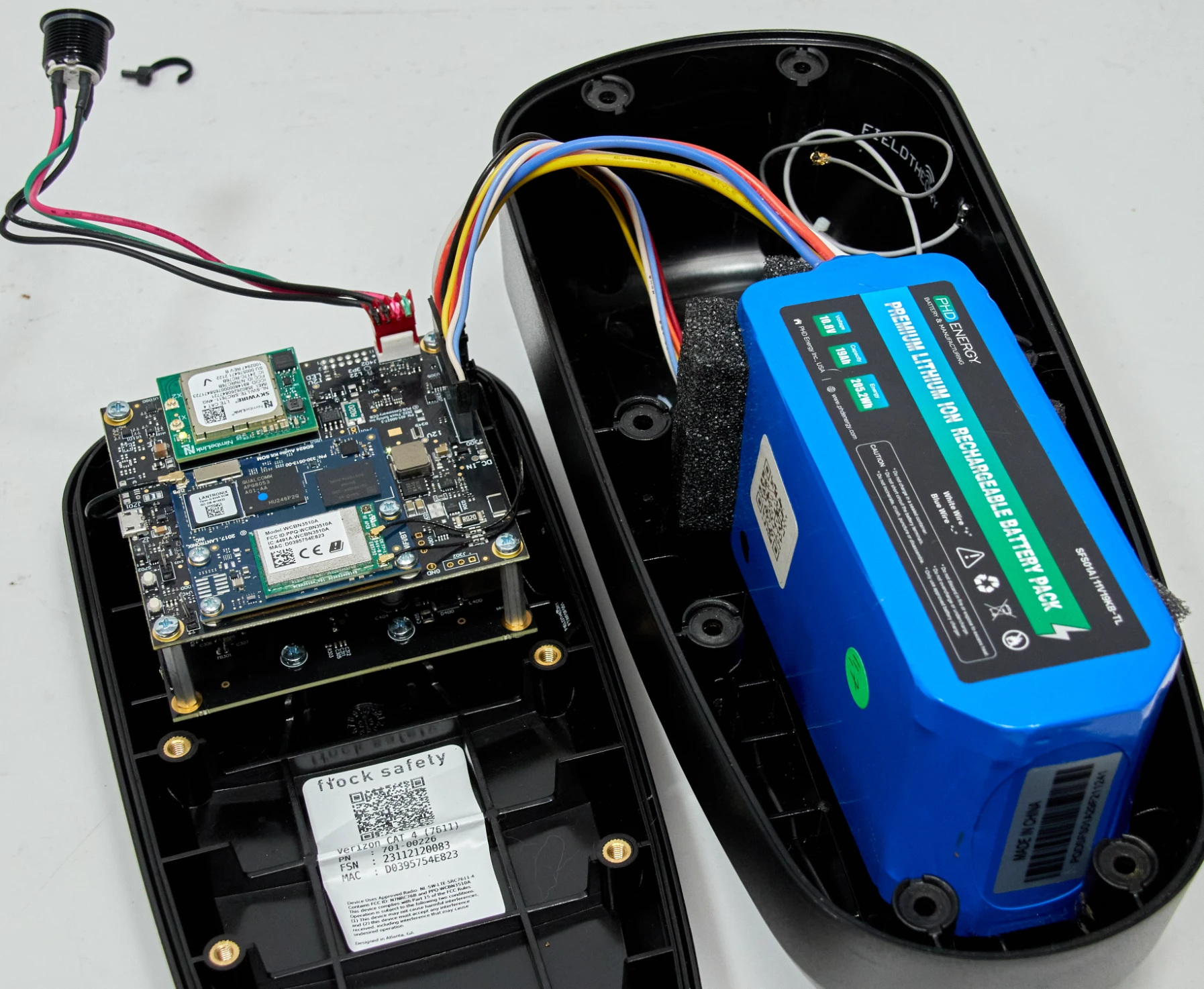

The particular units analyzed in this report were purchased from eBay and appear to have various hardware issues, including camera initialization failures and battery problems - likely the reason they were decommissioned and made available on the secondary market. Rather than becoming electronic waste, these "defective" units provide an invaluable opportunity for educational disassembly and technical exploration, demonstrating that even non-functional surveillance hardware retains significant value for understanding embedded systems architecture.

Most notable findings include the unlocked bootloader, which provides immediate access for custom firmware development, and the discovery of "Blue Mode," a dedicated diagnostic interface that broadcasts a Wi-Fi Access Point with an easily discoverable password and exposes critical network services, including web servers and video streams. The analysis also highlights inherent characteristics of the device's configuration, such as an older debug kernel, which offer significant opportunities for further technical exploration and potential repurposing of components.

Introduction

Our primary objective was to unravel the intricate operational logic of the Flock Falcon Flex Camera, moving beyond its designated function to understand its fundamental technical capabilities. This involved systematically testing its physical controls to identify undocumented boot modes, understand system initialization sequences, and ultimately gain advanced access for diagnostics and potential modification.

Physical UART Access: Our Primary Research Method

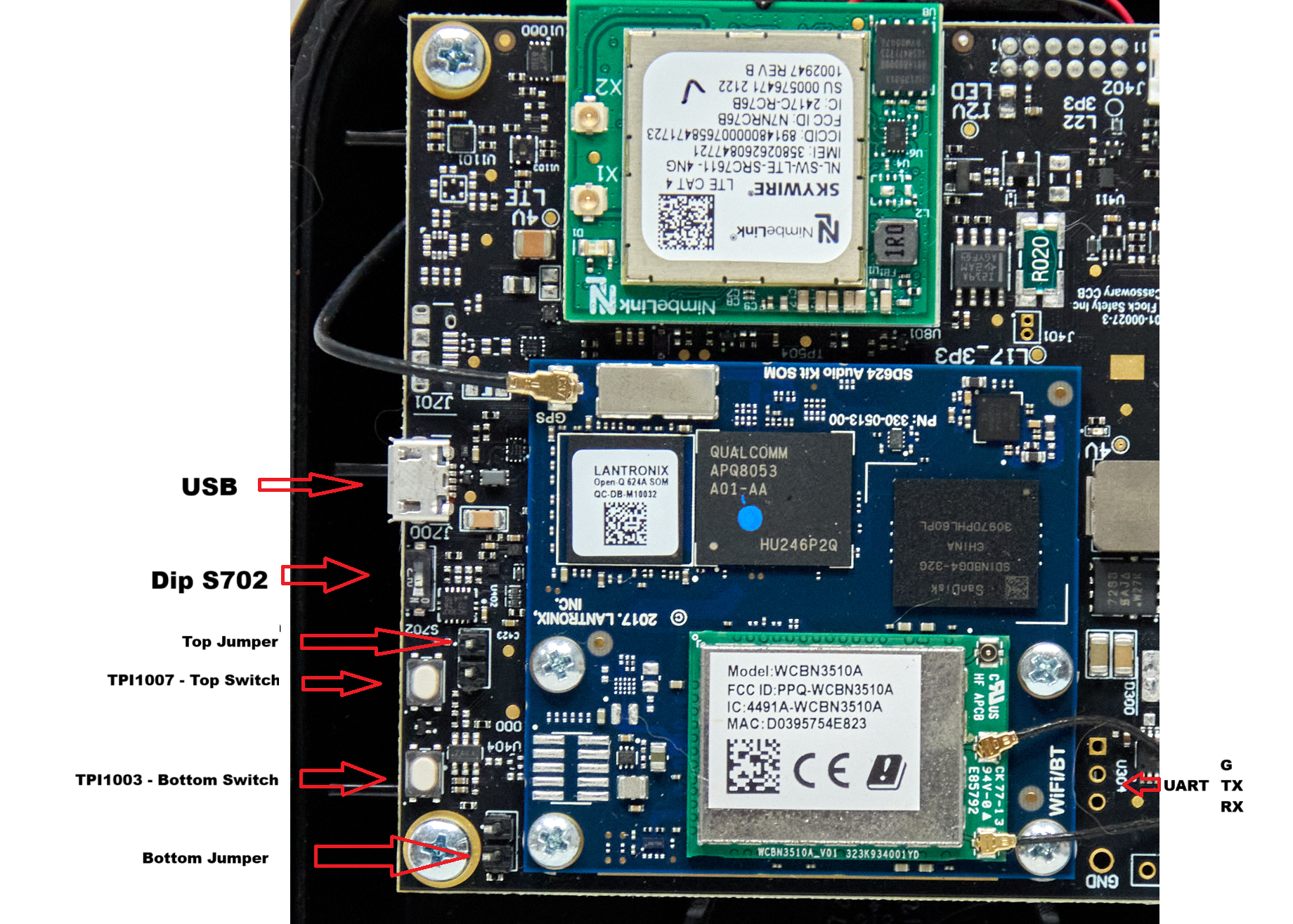

The device features accessible UART test pads on the main board, providing direct console access to the Linux kernel and Android system. This physical interface was crucial for gathering the detailed system information presented in this analysis.

Connection Setup:

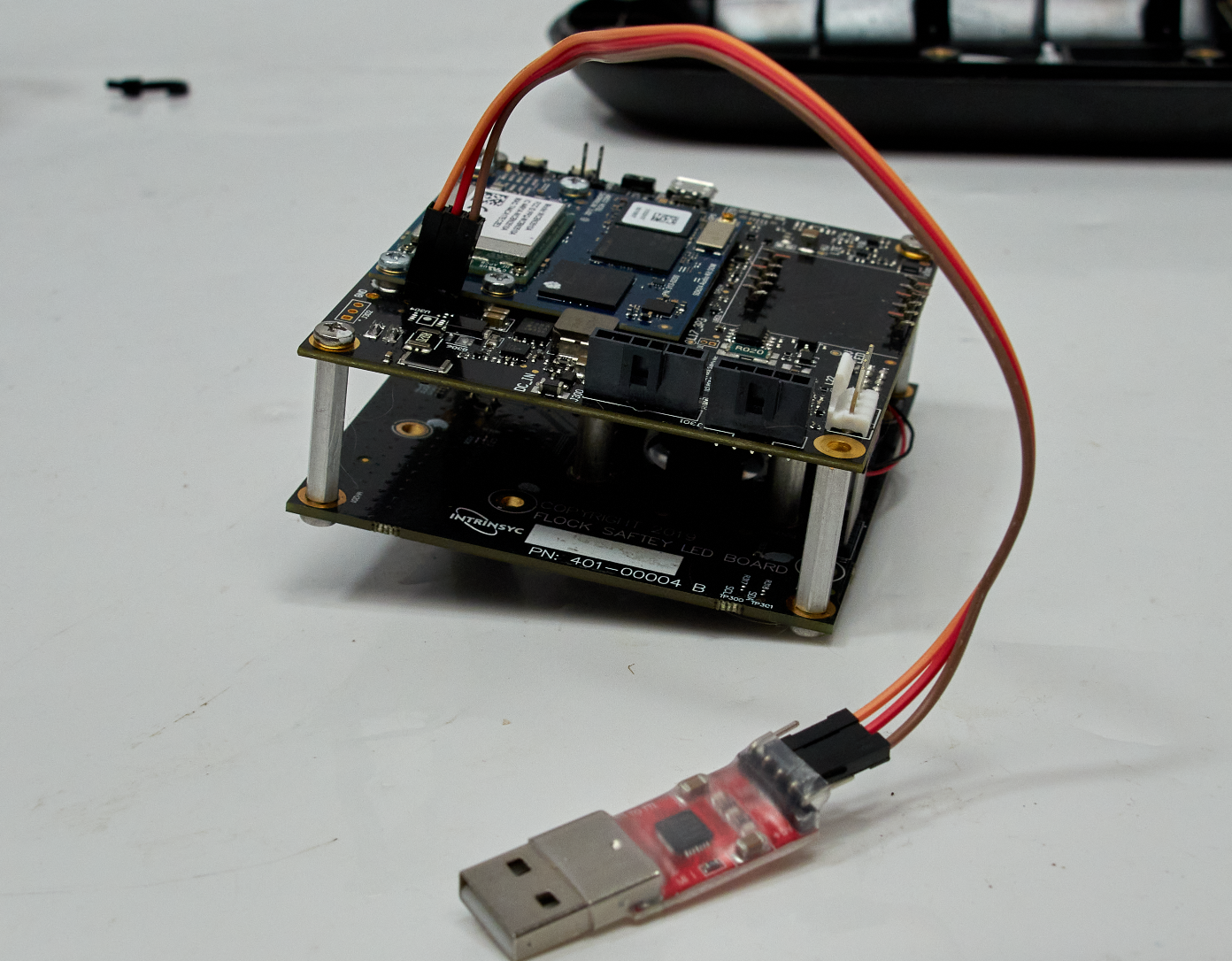

• Hardware Required: CP2102 USB 2.0 to TTL converter, Arduino connector wires/jumper cables
• Wiring Configuration:
  • Ground (G) from converter → Ground (G) on device UART pad
  • RX from converter → TX on device UART pad
  • TX from converter → RX on device UART pad
• Serial Terminal Settings:
  • Baud Rate: 115200
  • Data Bits: 8
  • Stop Bits: 1
  • Parity: None
  • Flow Control: None
• Access Level: Full kernel boot logs, Android shell access, real-time system monitoring
• Operational Modes: UART console is available in Green Mode and provides verbose debugging output during all boot sequences

This direct hardware access eliminated any need for software exploits or complex authentication bypasses, demonstrating the device's inherently open design philosophy for diagnostic purposes.

Hardware Specifications: A Component Breakdown

The Flock Falcon Flex Camera is engineered as a specialized embedded system, built around a Qualcomm Snapdragon platform. While its primary role is image/video processing, the underlying hardware offers a robust foundation for various applications.

Hardware Specifications:

Component	Detail	Opportunities for Exploration / Repurposing
System-on-Chip	Qualcomm Snapdragon 625 (msm8953_32), APQ8053 Lite + Ext Codec DragonBoard V2.0	A powerful, general-purpose ARMv7 SoC for custom embedded projects.
CPU Architecture	ARMv7 Processor (8 cores) @ 800 MHz	High-performance computing core for custom logic or data processing.
GPU	Adreno (TM) 506 (OpenGL ES 3.2 support)	Capable of advanced graphics/compute, useful for vision processing.
RAM	~1.95 GB total, 1.6 GB available	Ample memory for complex custom applications or data buffering.
Storage	29.1 GiB eMMC (DG4032, HS400ES mode)	High-speed, durable storage suitable for various embedded systems.
Internal Display	DSI MIPI_VIDEO_PANEL (480x854 @ 60 FPS, 240 DPI configured)	While no physical screen exists, the display controller is active, suggesting potential for external display integration or virtual framebuffer manipulation.
Wireless	Wi-Fi (2.4/5GHz, AP/Client modes), Bluetooth (BLE, various profiles), Qualcomm Cellular Modem, GNSS (GPS)	Full suite of connectivity options for custom IoT projects or data logging.
Sensors	Motion Sensor (GPIO 129, 28), Thermal Sensors	GPIO access for custom sensor integration; thermal management for stability.
Cameras	Attempts to initialize OmniVision OV5647, Sony IMX334, IMX477, IMX577	Although failing (possibly why this unit was sold), the presence of multiple camera drivers indicates a flexible imaging pipeline; if drivers can be debugged, high-quality imaging is possible.
USB	USB Host Controllers (EHCI, DWC3)	External peripheral connectivity for additional sensors or storage.

The device's internal configuration for a DSI display, despite no physical screen, is particularly intriguing. This suggests that the display stack is active, potentially allowing for the connection of an external screen or the manipulation of its virtual framebuffer for custom graphical outputs if the right access is gained. The persistent camera initialization failures may be why this unit was sold originally. However, they highlight a complex imaging subsystem that, if successfully debugged or re-initialized, could offer high-quality optical input for diverse projects.

Operational Modes: Unlocking the Device's Potential

The device features distinct operational modes, each serving a specific purpose and triggered by precise combinations of physical controls. These modes offer varied levels of access and control.

Software Environment and Components

The device's software is a highly customized Android 8.1.0 (Oreo) build. This provides a familiar, yet deeply embedded, operating environment ripe for modification and exploration.

Android Version and Kernel Type

• Base: Android 8.1.0.
• Build Fingerprint: qcom/msm8953_32/msm8953_32:8.1.0/OPM1.171019.026/2009005:user/release-keys.
• Kernel Version: Linux version 3.18.71-perf-g0143ed0, built on Wednesday, August 7, 2024.
• Debug Kernel: Explicitly identified as a "DEBUG kernel" (trace_printk() being used. Allocating extra memory. ... unsafe for production use.). For an investigator, this is a distinct advantage, providing verbose logging and debug features that simplify understanding internal operations and potential breakpoints.

Core Android Services & Custom "Flock" Software

The system runs standard Android services (init, logd, vold, servicemanager, zygote, system_server, various HALs) alongside proprietary "Flock" services (prefixed com.flocksafety.android.). These custom services are of particular interest:

• FlockReaperDaemon & SystemControlService: These central services offer insights into how the device manages its own stability, modem resets, and GPIO interactions. Understanding their logic could enable custom hardware control.
• CirocService, SessionFilterService, Objects: These services clearly leverage machine learning models (yolo_pico3_float16) and OpenCV for on-device object detection and video analysis. This showcases the device's capability for embedded AI, a powerful feature for any custom vision project.
• UploadService / UploadClient: Indicates how data (likely video/images) is prepared and transferred. Reverse-engineering this process could allow for custom data routing.

Embedded AI Architecture: YOLO and OpenCV Integration

The discovery of the yolo_pico3_float16 model within the device's software stack reveals sophisticated embedded AI capabilities that extend far beyond simple license plate recognition. This lightweight YOLO (You Only Look Once) variant represents a significant advancement in edge computing for computer vision applications.

YOLO_PICO3_FLOAT16: Optimized for Edge Computing

The yolo_pico3_float16 model is specifically engineered for embedded systems with limited computational resources:

• Compact Architecture: Designed to run efficiently on devices with constrained memory and processing power
• FP16 Precision: Utilizes 16-bit floating-point operations to reduce memory usage and increase inference speed
• Real-Time Performance: Capable of processing video streams at high frame rates for immediate object detection and classification
• Multi-Object Detection: Can simultaneously detect and classify multiple objects in a single frame, not limited to license plates

OpenCV: The Computer Vision Foundation

OpenCV serves as the backbone of the device's computer vision capabilities, providing:

• Image and Video Processing: Tools for reading, writing, and manipulating video streams from the camera sensors
• Preprocessing Pipeline: Functions for resizing, normalization, and color space conversions to prepare data for YOLO inference
• Postprocessing Tools: Utilities for drawing bounding boxes, applying non-maximum suppression, and visualizing detection results
• Real-time Processing: Optimized for continuous video stream analysis with minimal latency

Service Architecture: CirocService and SessionFilterService

The custom services work in orchestrated fashion to manage the AI pipeline:

• CirocService: Acts as the primary orchestrator, managing YOLO model initialization, camera input interfaces, and inference result processing. This service likely coordinates the entire object detection pipeline and interfaces with other system components.
• SessionFilterService: Manages data flow and filtering mechanisms, likely responsible for tracking objects across frames, filtering redundant detections, and ensuring only relevant information is processed further. This service optimizes the detection pipeline for efficiency and accuracy.

The presence of this advanced embedded AI stack, combined with the device's accessibility features (unlocked bootloader, debug kernel), presents exceptional opportunities for repurposing the hardware for innovative computer vision projects that require real-time, on-device processing without cloud dependencies.

Pathways to Root

The device's configuration presents several aspects that, while potentially concerning for security in a typical deployment, offer significant pathways for technical exploration and control when considering repurposing. The primary pathway to making these devices useful is the unlocked bootloader and the ability to use fastboot commands, which provides direct, low-level access for firmware modification and custom OS installation. Blue Mode serves as a secondary diagnostic pathway for exploration.

Unlocked Bootloader: The Primary Gateway

This is the most important feature for repurposing these devices. The messages "androidboot.verifiedbootstate=orange" and "Device is unlocked! Skipping verification..." confirm that the device's bootloader is unlocked. This is the critical enabler for any custom development, as it allows for flashing unauthorized or custom firmware, opening the door to installing alternative Android builds or even completely different operating systems.

• Fastboot Interface: Direct access to flash partitions, boot custom kernels, and modify system images
• No Verification Bypass Needed: Unlike locked devices, no exploits or complex procedures are required
• Custom Firmware Ready: Can immediately flash LineageOS, Ubuntu Touch, or completely custom embedded Linux distributions
• Partition Access: Full read/write access to boot, system, recovery, and userdata partitions

Debug Kernel and Software Environment

• Outdated/Debug Kernel: The Linux kernel version 3.18.71 is older. For a researcher, older kernels often have well-documented exploits or more accessible debug interfaces, making it easier to gain deeper system access. The "DEBUG kernel" explicitly facilitates this by providing verbose logs, trace_printk() functionality, and extra allocated memory, all of which are invaluable for reverse-engineering and understanding system behavior.
• No Package Verifier: The system logs E PackageManager: There should probably be a verifier, but, none were found. This means there are no integrity checks on installed applications. For those looking to install custom software, this absence significantly simplifies the process, removing a major hurdle for development and testing.

Blue Mode Wi-Fi Access: Secondary Diagnostic Pathway

While not the primary method for device repurposing, the "Blue Mode" Wi-Fi Access Point (flock-54E823) uses a hardcoded password of "security". This trivial password, combined with WPA2-PSK encryption, provides access to the device's internal diagnostic network for exploration and analysis.

SELinux Policy Gaps

Frequent avc: denied messages suggest that SELinux policies for custom applications are either loosely configured or that the custom software attempts operations that are not strictly permitted. For an explorer, these denials often point to areas where policy weaknesses could be leveraged to gain higher privileges or circumvent restrictions, further enabling custom control.

Pathways to Deeper Control: Exploring System Modification

Given the Flock Falcon Flex Camera's hardware and software configuration - specifically, its Qualcomm Snapdragon 625 (MSM8953) SoC, Android 8.1.0 OS, unlocked bootloader, and debug kernel - there are several compelling avenues to explore for flashing a different operating system or custom firmware, opening up the device for new projects.

EDL Mode Exploits via Firehose Programmers

Qualcomm devices often support Emergency Download (EDL) mode, a low-level state allowing direct access to the device's internal storage partitions. Tools like EDLUnlock are known to exploit this mode, for instance, by modifying the devinfo partition to unlock the bootloader on MSM8953 chipsets.

Considerations:

• Requires a compatible Firehose programmer file specific to the MSM8953.
• There is an inherent risk of rendering the device unbootable if incorrect files or procedures are followed.
• May necessitate specific hardware access to trigger EDL mode, such as shorting test points.

Kernel-Level Vulnerabilities

The presence of an older, debug-enabled kernel (Linux 3.18.71) significantly increases the potential for discovering unpatched vulnerabilities. For example, a use-after-free vulnerability (CVE-2020-11239) in Qualcomm's KGSL driver, though a specific example, illustrates the type of flaw that could potentially allow arbitrary code execution within the kernel space.

Considerations:

• Exploiting such vulnerabilities demands a deep understanding of kernel internals and system architecture.
• Successful exploitation could grant root access, which is a powerful enabler for modifying and flashing custom firmware.
• The stability and reliability of any developed exploit would require thorough testing.

Utilizing the Fastboot Interface

The device's Fastboot mode, visually indicated by flashing red LEDs, provides a standard and robust interface for flashing firmware images. Given that the bootloader is explicitly unlocked, Fastboot commands offer a direct path to load custom operating systems or components:

Exploiting "Blue Mode" Diagnostic Interface

The "Blue Mode" uniquely exposes several network services, including a web server (on port 1040/tcp) and an MJPEG video stream (on port 1234/tcp), accessible via its trivially-passworded Wi-Fi hotspot. Investigating these services could uncover undocumented APIs or command interfaces that might provide alternative methods for firmware modification, extraction of sensitive operational data, or even direct control over device functions.

Considerations:

• Requires active network access to the device when it is operating in "Blue Mode."
• The potential exists for discovering undocumented command structures or web-based configuration options.
• Any exploitation of these interfaces would need to be considered carefully within ethical and legal frameworks.

Conclusion and Recommendations: Embracing the Openness

The Flock Falcon Flex Camera is a complex embedded system, but its design choices, particularly around diagnostic access and software flexibility, present a rich environment for technical exploration. The identified characteristics – an accessible debug kernel, an unlocked bootloader, and the highly permissive "Blue Mode" – are not just points of interest; they are direct invitations to understand, modify, and potentially repurpose the device.

Recommendations for Further Exploration:

• Reliable "Blue Mode" Trigger Isolation: Conduct highly focused tests with the TPI1007 (Top Switch), varying the Top Jumper state, DIP Switch (S702) state, and power source (battery vs. USB only) to isolate the most reliable and consistent trigger sequence for "Blue Mode." This is the primary gateway.
• Comprehensive Web Interface Mapping: Once reliable "Blue Mode" access is established, systematically explore the web interfaces on ports 1040 and 8080. Identify exposed functionalities, configuration options, and diagnostic data. This could reveal direct control mechanisms.
• MJPEG Stream Analysis & Camera Activation: Prioritize accessing and analyzing the MJPEG stream on port 1234. Understanding its content and quality is key. If possible, investigate methods to force consistent camera sensor initialization in other modes, potentially leveraging the flexibility offered by the debug kernel.
• Custom Firmware Development: Given the unlocked bootloader and lack of package verifier, explore the development and flashing of custom Android firmware or even alternative operating systems (e.g., Linux distributions) to completely repurpose the device's powerful Snapdragon SoC.
• Leveraging Custom Flock Services: Disassemble or analyze the custom "Flock" services to understand their internal logic, particularly the SystemControlService for hardware interactions and the ML-powered SessionFilterService for embedded vision capabilities. This could inspire new applications.

This comprehensive report serves as a critical resource for those seeking to understand the intricate details of modern embedded systems and to explore the fascinating possibilities that arise when such devices reveal their inherent openness. The "secret life" of this street sentinel offers a unique opportunity for technical ingenuity.
